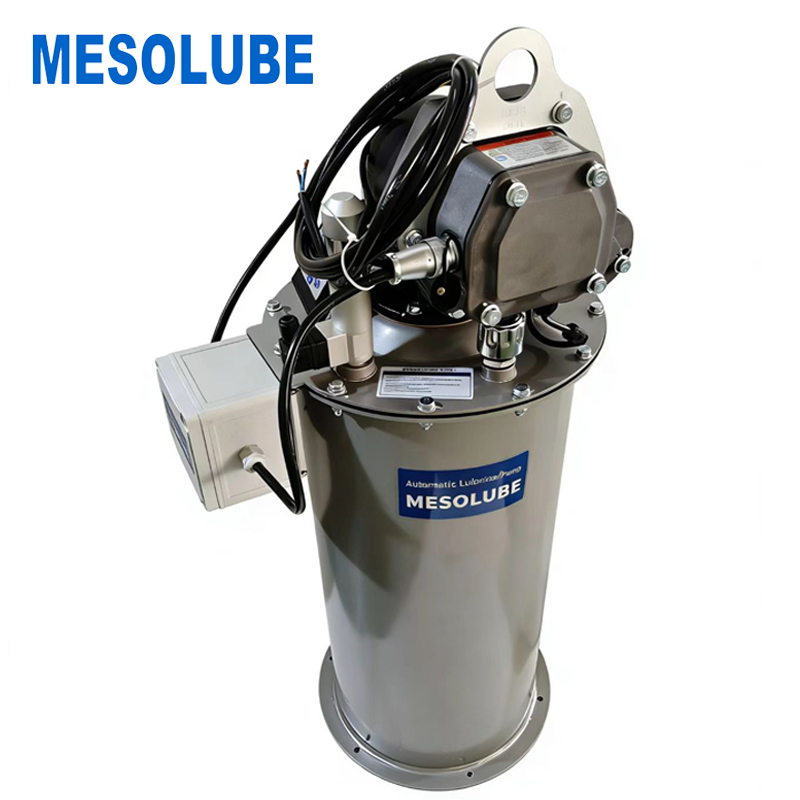

Pompa FlowMaster berkinerja tinggi yang dioperasikan secara elektrik untuk sistem pelumasan otomatis jalur tunggal dengan reservoir 30L/50L.
Pompa Pelumasan Mesolube:
Suitable for single-line lubrication systems
Compact and versatile, its unique rotary drive and modular gear set let you adjust the speed of the pump’s motor to exactly fit your application. FlowMaster pumps can save the cost of air and plug in 12/24 V DC, 120/230-1ph and 230/460-3ph V AC models. The motion of pump created by the electric rotary motor is converted into reciprocating pump motion, providing an efficient lubricant flow. Because of its rotary drive, the motor can be placed directly on the pump. As a result, the pump is so compact it fits almost anywhere. FlowMaster pumps are optionally available incl. mechanical overflow prevention system to improve worker and environmental safety by helping to prevent hazards associated with reservoir overfilling.
The future of automatic lubrication lies in digitalization and intelligence—and our recent cases prove its transformative power.
Great conversations, new partnerships, and a clear demand for reliable lubrication tech!
Keterangan
Suitable for single-line lubrication systems
Compact and versatile, its unique rotary drive and modular gear set let you adjust the speed of the pump’s motor to exactly fit your application. FlowMaster pumps can save the cost of air and plug in 12/24 V DC, 120/230-1ph and 230/460-3ph V AC models. The motion of pump created by the electric rotary motor is converted into reciprocating pump motion, providing an efficient lubricant flow. Because of its rotary drive,
Spesifikasi
| Prinsip fungsi | pompa piston yang dioperasikan secara elektrik | |
| Outlet | 1 | |
| Metering quantity adjustable | max. 103 cm³/min | max. 6.3 in³/min |
| Pelumas | grease NLGI 0, 1, 2 | |
| Suhu Operasional | –40 to +65 °C | –40 to +150 °F |
| Tegangan operasi | 12/24 VDC 120-460 V AC |
|
| Operating pressure depending on voltage | ||
| 12 V DC | max. 251 bar | 3500 psi |
| 24 V DC | max. 345 bar | 5000 psi |
| 120-460 V AC | max. 345 bar | 5000 psi |
| Electric current depending on voltage | ||
| 12 V DC | 1-7,5 A | |
| 24 V DC | 1-4,6 A | |
| 120-460 V AC | 0,5-2,4 A | |
| Kapasitas waduk | 35, 50, | 85, 110, lb |
| Bahan | fluoroelastomer, polyurethane, steel, aluminum zinc casting | |
| Stopkontak koneksi | 1/4 NPTF | |
| Gear ratio | 17.8:1; 19:1; 34:1 | |
| Nominal power | 5-50 and 9,5-100 rpm | |
| Ukuran | ||
| 35 kg, 90 lb | 360 × 350 × 170 mm | 14.17 × 13.78 × 6.7 in |
| 50 kg, 120 lb | 408 × 223 × 946 mm | 16.07 × 8.78 × 37.24 in |
Ukuran
Silakan hubungi kami untuk dimensi lebih lanjut!
