Series SL-V metering devices For use in single-line lubrication systems
Features and benefits
- Shipped with manifolds from 1 to 6 ports
- Output is externally adjustable
- Clear, polycarbonate protected cap over indicator pin permits visual check of operation
- Can be removed easily for inspection or replacement
- Output setting system by a set of color-coded sleeves
applications
- Construction machinery
- Mining and mineral processing
- Steel industry
Keterangan
For use in single-line lubrication systems
Series SL-V metering devices are for single-line, high-pressure centralized lubrication systems dispensing lubricants compatible with polyurethane seals up to NLGI 2. Output is externally adjustable. An indicator pin permits visual check of metering device operation. Individual metering devices can be removed easily for inspection or replacement. Each SL-V metering device includes a clear, polycarbonate protective cap.
Kode pemesanan
- For single-line, high-pressure central lubrication system.
- For dispensing lubricants compatible with polyurethane seals up to NLGI No. 2 (refer to Design Guide).
- Output dapat disesuaikan secara eksternal.
- Batang indikator memungkinkan pemeriksaan visual operasi injektor.
- Individual injectors can be easily removed for inspection or replacement.
- Each SL-V injector includes a clear polycarbonate protective cap.
Spesifikasi
| Prinsip fungsi | perangkat pengukuran 1) | |
| Outlet | 1 to 6 | |
| Kuantitas pengukuran | 0,25 to 1,31 cm³ | 0.015 to 0.08 in³ |
| Pelumas | greases up to NLGI 0, 1, 2 | |
| Suhu Operasional | max. +82 °C | max. +180 °F |
| Tekanan operasi | 128-413 bar typical: 172 bar |
1850-6000 psi typical: 2500 psi |
| Relief pressure | 70 bar | 1000 psi |
| Bahan | carbon steel | |
| Connection main line | 3/8 NPTF (F) | |
| Stopkontak koneksi | 1/8 NPTF (F) | |
| Ukuran | min. 63 × 222 × 35 mm max. 203 × 222 × 35 mm |
min. 2.5 × 8.7 × 1.4 in max. 6.1 × 8.7 × 1.4 in |
| Posisi pemasangan | any | |

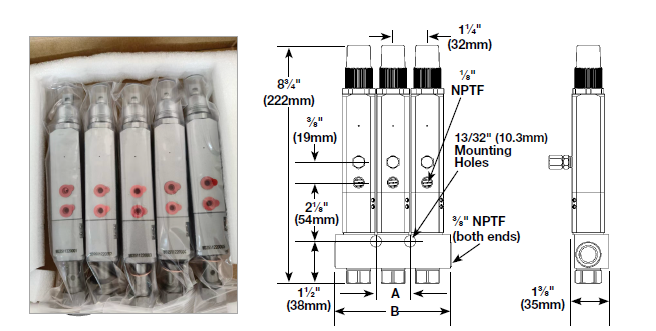

Ukuran
Aplikasi
