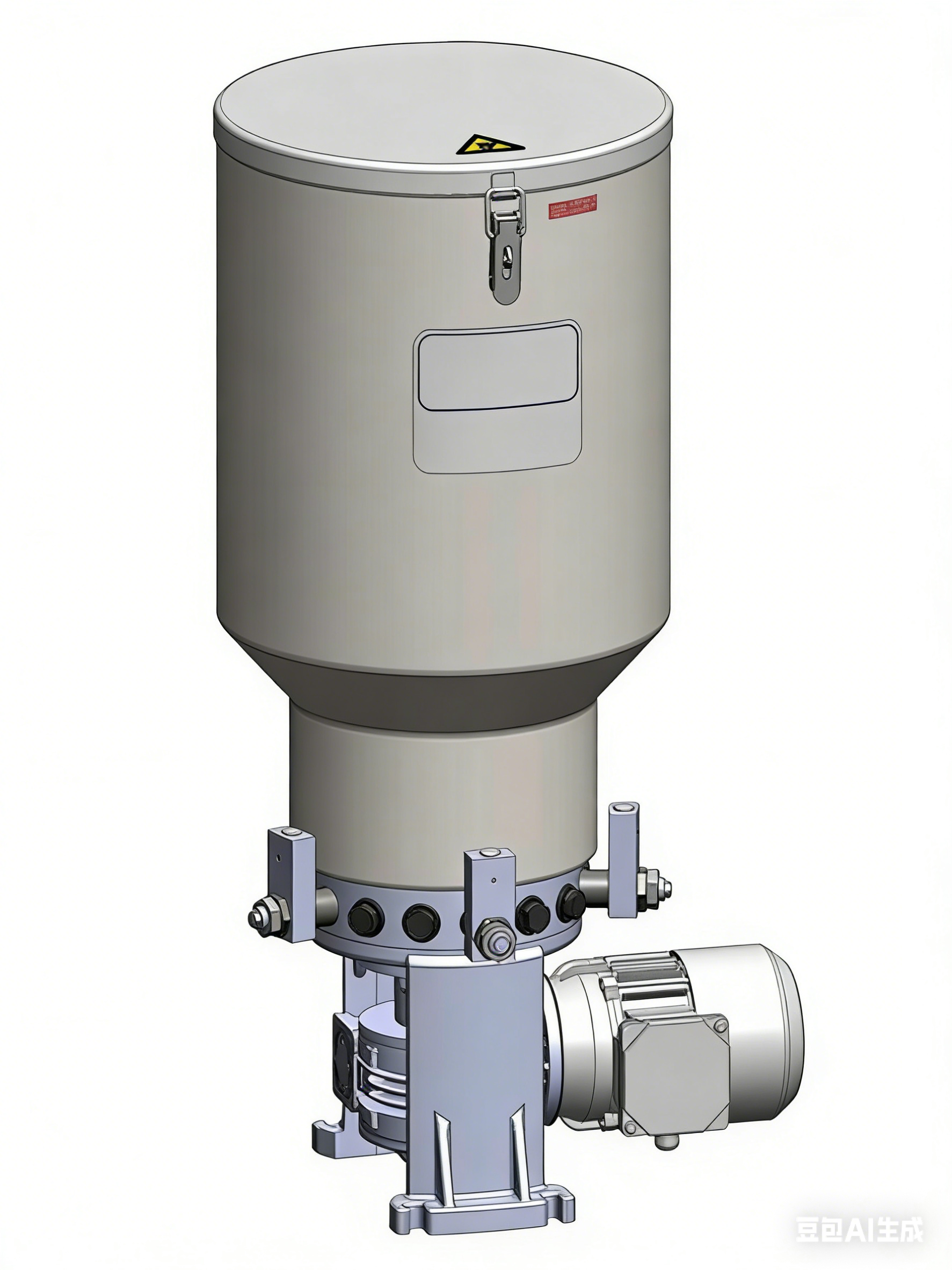

Pompa pelumasan listrik P 215- 15/30L -M10 untuk sistem pelumasan otomatis multi-jalur dengan reservoir 15L 30L
Pompa Pelumasan Mesolube:
This high-pressure, multi-line pump can drive up to 15 elements. Different sizes of adjustable elements are available. It is capable of handling direct supply of lubrication points or can be used as a centralized lubrication pump in large-sized progressive systems.
P 215 pumps are available with a three-phase, multi-range motor, with a single-range motor, with a free shaft end for use with other motors, or with an oscillating drive. Various gear ratios and reservoirs of different sizes and materials are available. The reservoirs are suitable for both grease and oil and are offered with or without level control.
- These pumps P 215 lubrication pump feed lubricant from the reservoir into the tubing system of an automatic centralized lubrication system.
- Mereka mempertahankan tekanan yang cukup untuk mengimbangi penurunan tekanan dalam pipa, filter, katup, distributor, dan titik gesekan.
- Berbagai jenisnya meliputi:
- multi-line lubrication systems
- Sistem pelumasan progresif
- Stationary machines with a high lubricant consumption
- Screens and crushers in quarries
- Material handling equipment
- Roller coasters
Keterangan
Untuk sistem pelumasan progresif
Tmesolube electic grease pump P304 are used in both single-line lubrication system or progressive lubrication system.we will provide all the lubricaiton products ,maintenance ,installation . there are suitable for many industrys ,including excavator ,wind power ,wheel truck ,loader , coal mine .cement and so on .how to choice a suitable lubrication system for your equipment .
dalam keadaan berikut sistem pelumasan mana yang dapat digunakan,
pertama.jika setiap titik pelumasan perlu jumlah besar yang berbeda untuk setiap waktu,
kedua, tidak perlu memantau setiap titik pelumasan,
Ketiga, panjang pipa utama bahkan lebih dari 50 meter. Kami sarankan agar menggunakan sistem pelumasan single-line.
Spesifikasi
| Prinsip fungsi | radial piston pump with stirrer; rotary, oscillating or electrically operated | |
| Outlet | 1 to 15 | |
| Suhu Operasional | –25 hingga +70 °C | -13 to +158 °F |
| Tekanan operasi | 350 batang | 5075 psi |
| Pelumas | mineral and synthetic oil and grease oil: viscosity from 20 mm²/s | |
| Metering quantity per stroke | min. 0,11 cm3 max. 0,23 cm3 |
0.0067 in3 0.014 in3 |
| Reservoir 1) | plastic: 4 and 8 kg | 8.8 and 17.6 lb |
| steel: 10, 30 and 100 kg | 22, 67 and 220 lb | |
| Internal ratio | 7:1, 49:1, 100:1, 490:1 | |
| Output per outlet | 0,13 to 6,4 cm³/min | 0.008 to 0.39 in³/min |
| Koneksi stopkontak | G 1/4 | |
| E-motor drive | with 3-phase motor | |
| Drive speed | <28 min-1 | |
| Ukuran | min. 438 × 453 × 326 mm max. 1 225 × 600 × 550 mm |
min. 17.24 × 17.84 × 12.84 in max. 48.23 × 23.26 × 21.65 in |
| Kelas perlindungan | IP 55 | |
| Posisi pemasangan | vertical | |
| Options | hydraulic driven; 24 V DC motor | |

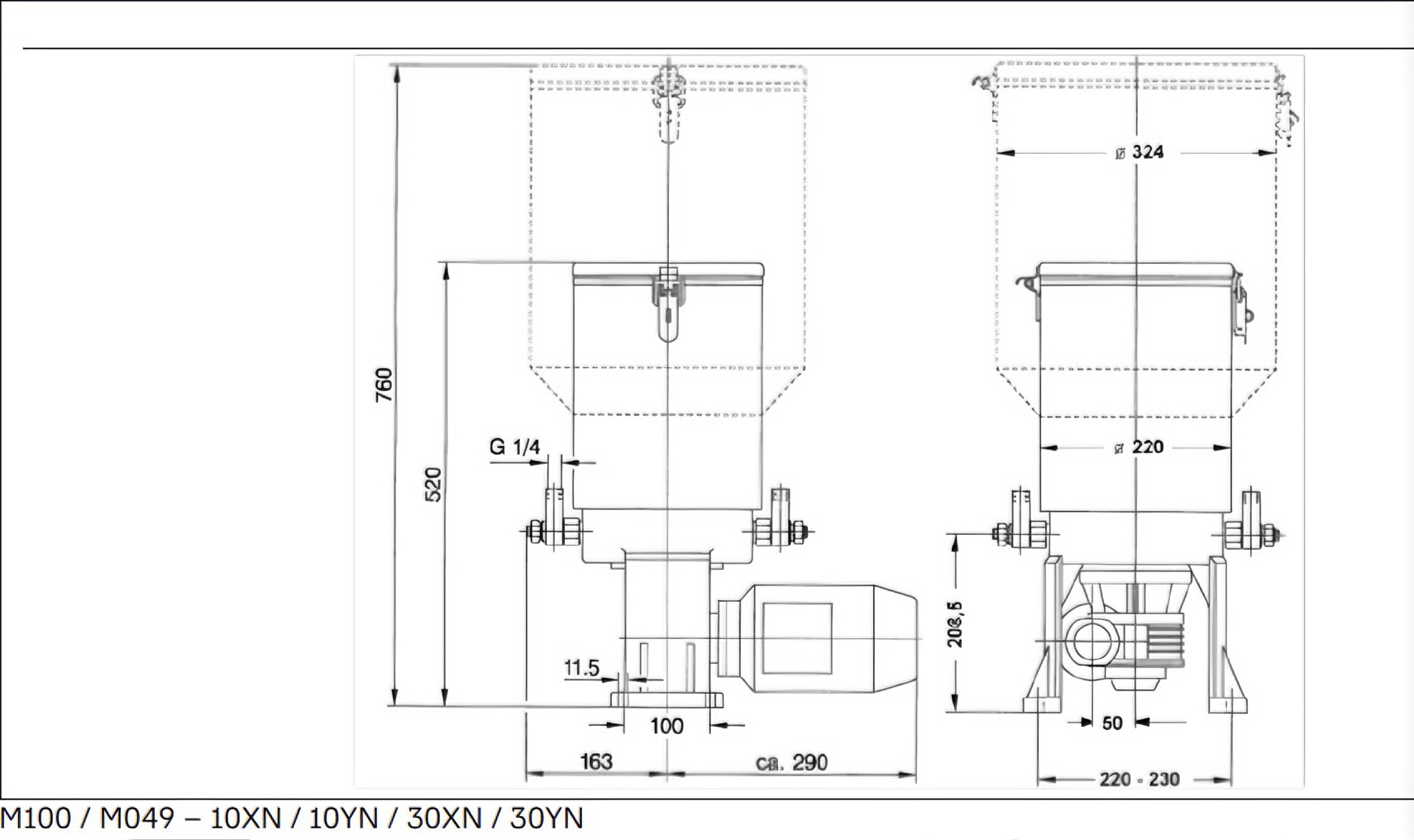

Ukuran
Silakan hubungi kami untuk dimensi lebih lanjut!
